Description

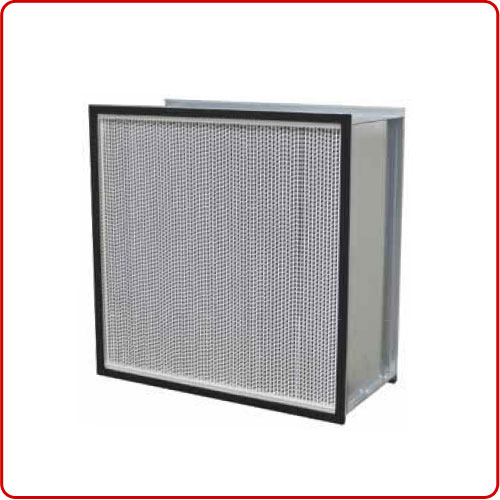

MEGAcel™ l Extended Surface Pleated Panel Filters
PTFE Membrane Filters for State-of-the-Art Contamination Control
Product Feature
- Lower energy consumption
- PTFE Membrane combines ultra-high efficiency with lowest pressure drop
- Highly resistant to corrosive environments (acids, alkalis, and organic substances)
- Negligible off-gassing properties (boron, sodium, potassium, silicon)
- Tougher media, more resistant to rough handling in transportation and installation
- Meets UL 900 Standard Class 1 rating
- Withstands pressure up to 20 in. w.g. (5,000 Pa)
AAF MEGAcel™ l HEPA filters are designed to meet the demanding airflow and efficiency requirements of cleanroom applications in which airborne contaminants must be carefully controlled. Manufactured with high performance PTFE media and aluminium separators, MEGAcel™ l optimizes efficiency while keeping operating costs to a minimum.
Application
- Electronic
- Food Processing
- Healthcare
- Laboratory
- Pharmaceutical
- Semiconductor
Specifications
| Size | Depth (mm) | Face Velocity m/s | Air Flow m³/h |
IR (Pa) | |
| H13 | H14 | ||||
| 610 x 610 | 292 | 2.5 | 3400 | 170 | 190 |
| 610 x 610 | 149 | 1.25 | 1700 | 140 | 180 |
| Max. Operating Temp. | 70ºC |
| Media | PTFE |
| Separators | Aluminium Separators |
| Cellsides | Galvanized Steel, Stainless Steel |
| Final Resistance | 750 Pa |
| Test Certificate | UL Certified |
