Description

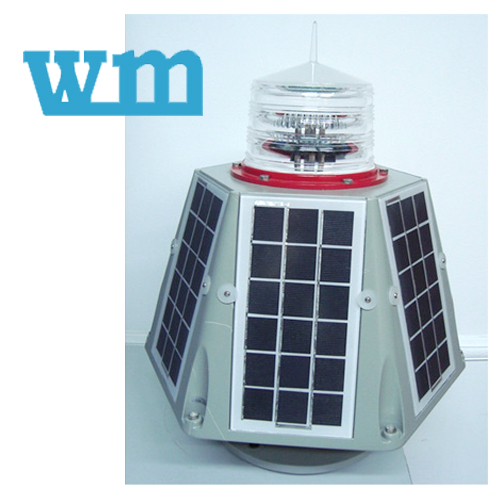

The optical system utilises WM-Patent designed UV-stabilized acrylic optic lens and with a choice of up to 3-tiers of the highly efficient, high intensity LED array, OR 2-tiers with integrated optional feature(s). It has an effective range of up to 6.1 nautical miles at a transmissivity factor of T=0.74 or 8 nautical miles @ transmissivity factor of T = 0.85 (with the use of Hi Power LEDs and increased number of tiers to achieve upto 12 nautical miles @ transmissivity factor of T = 0.85).
The housing is constructed from material of toughened polycarbonate resin and the base is of marine graded aluminium alloy (painted to respective colour of identification). The unit houses up to 26AH capacity of sealed, maintenance-free battery. The assembly consists of 6 nos. of 3W high efficiency, monocrystalline solar modules.
The WM-BL140SP-6 is preprogrammed with up to 256 field selectable flash codes and changing the flash character can be easily done by using an Infrared programmer unit.
The WM-BL140SP-6 self-powered LED lantern has a wide vertical divergence and is primarily designed for installation on fixed structures, buoyant beacons and navigation buoys in all areas.
| Techical Specifications: | ||
| Operating Voltage | : | 12 volts DC |
| Power Consumption | : | 0.38W @ 12.5% duty (1-tier LED array) 0.75W @ 12.5% duty (2-tiers LED array) |
| Lens Optic | : | ACRYLIC UV-STABILIZED |
| Horizontal Divergence | : | 360º Omni-Directional |
| LED Colours Available | : | Red, Green, Yellow, White, Blue |
| Vertical Divergence | : | 10º at 50% CD |
| Battery Capacity (Nominal) | : | up to 26 AH (nominal 14AH) |
| Days of Autonomy | : | typically 25 days (for duty cycle <15%) |
| Solar Modules | : | SIX(6) 9V 3W MONOCRYSTALLINE |
| Temperature Range | : | -30ºC to +70ºC |
| Relative Humidity | : | 100% (condensing) |
| Housing Construction | : | Polyethylene Battery Housing & Marine-graded Aluminium alloy Base with Acrylic Powder-Coating finished |
| Ingression Protection | : | IP-68 (sealed, water-tight) |
| Dimensions & Weight (standard unit) |
: | Each side panel 150mm (6 sides) Width 450mm x Height 570mm (including integral birdspike) Weight 17 kgs (approx.) – 26AH version; 12 kgs (approx.) – 14AH version |
| Mountings | : | 3 or 4x 16mm on dia.200 PCD |
| Other Features | : | Option of Programming by either – a) Manually b) via Radio c) via Serial port Communication means:- |
