Tuwei Rool Grooving Machine TWG-IV A | Yellow Pages Marketplace

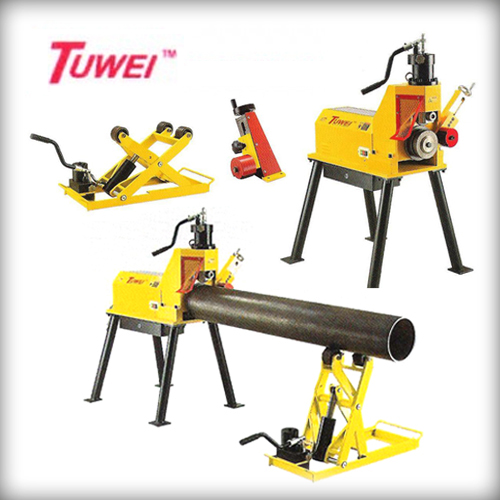

Tuwei Rool Grooving Machine TWG-IV A

Category:

Description

TUWEI ROOL GROOVING MACHINE TWG-IVA

• This machine is applicable for grooving of the end of 8″-24″steel pipes with a maximum wall thickness of 12 mm.
• Come with latest hydraulic pump plus stroke limitation devices to precisely and effectively control the depth of groove.
• The high-power high-performance gear reducing motor coupled with the steel pipe guide wheel ensures high channeling quality plus high working efficiency.
• Come with a foldable hydraulic steel support to contribute to easier operation and labor saving.

Technological Parameters
• Processing Capability
8″-24″ (<1>219-<1>630) Steel pipe
Max. wall thickness: 12mm
Output RPM : 14 rotations/m
• Driving Power
Three-phase motor, Voltage: 110-41 5V.
Power capacity: 1500W. Frequency: 50-60Hz
N.W.: 235kg
Packaging size: 1010x810x1400mm

• Standard Configuration
Hydraulic Steel pipe support, one piece
A set of 8″-24″ knurl wheel, 3 pieces
A set of 8″-24″ pinch roll, 2 pieces
A set of guide wheel
