Description

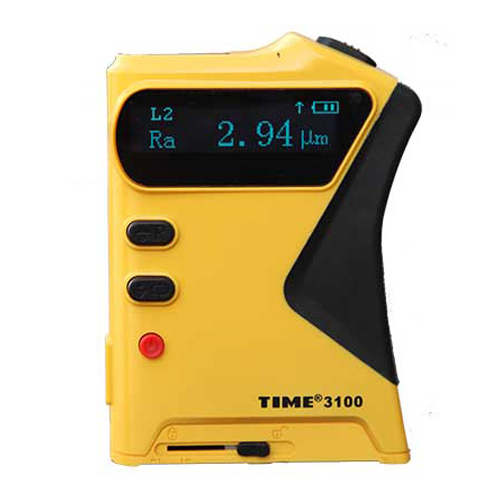

Portable Surface Roughness Tester – TIME3100 is a pocket-sized economically priced instrument for measuring surface texture conforming to traceable standards. It can be used on the shop floor in any position, horizontal, vertical or anywhere in between.
The large LCD display shows either roughness parameter Ra or Rz at the touch of a button, combined with the selected cut-off length. External calibration of roughness values is possible by means of a special CAL button, which makes adjustment of this instrument very easy. A beep signal informs the user of each individual measurement status when ready.
The easy to use TIME3100 operates on various surfaces, not only flat but also outer cylinder, outer cone, grooves, and recesses greater than 80 X 30mm. The areas of application are wide spread. This unit is most suitable for inspection departments, quality control, on the shop floor during machining, assembly and on-site.
TIME3100 determines both roughness parameters Ra and Rz within a wide measuring range (See specifications below). The piezo-electric pick-up stylus with diamond tip assures a very reliable measurement within tolerances in conformance with ISO Class 3. Ra parameter is in conformance to ISO while Rz conforms to DIN standards
Dual display on front & top cover
- Large LCD with backlight
- Pocket-size & economically price
- Large measuring range suitable for most materials
- Measures flat, outer cylinder and sloping surface
- Both Ra and Rz parameters in one instrument
- Features external calibration at keyboard
- Rechargeable batteries, work while charging
