TB Wood’s Light-Duty (FHP) V-Belt Drives | Yellow Pages Marketplace

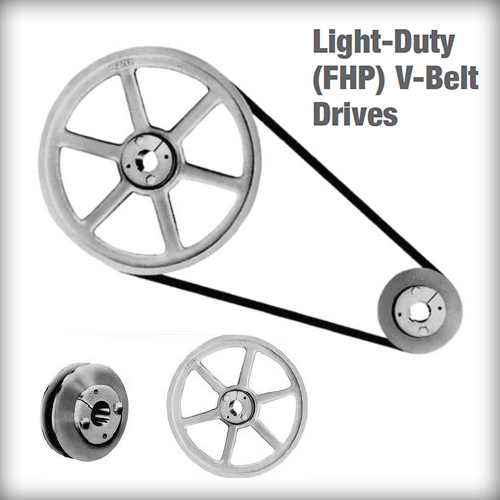

TB Wood’s Light-Duty (FHP) V-Belt Drives

• Fixed Bore and Sure-Grip Bushed Designs • Cast Iron Sheaves • Light-Duty V-Belts • Capacities To 15 Hp • Easy-Mount Sure-Grip Quick-Detachable Bushings • Efficient, Economical, Lightweight

• Bore Sizes From 1/2 To 1-1/2 Inches

Category:

Description

Light-duty sheaves are available in two types, both with one and two grooves. “A” sheaves are made to accommodate A (4L) belts; “B” sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts.
Wood’s light-duty sheaves can be equipped with Wood’s “QT” Sure-Grip QD-type bushings. This quick-detachable tapered bushing is split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
Sure-Grip bushings are easy to install and remove. The flange has two drilled and two tapped holes for easy assembly with two capscrews. Bore range is 1/2 through 1-1/2 in.
