Short-Cycle Drawn Arc Stud Welder BMK-12W

Category:

Description

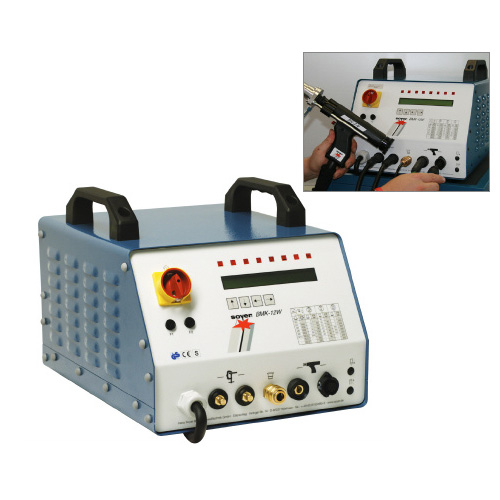

Short-Cycle Drawn Arc Stud Welder
Model : BMK-12W
This tried and tested stud welder offers versatility and easy operation. It is operated via display and all important welding parameters can be adjusted using only 4 keys.

The BMK-12W SOYER stud welder with outstanding quality and performance features represents the current and future state of stud welding technology. The all-digital stud welder with computer intelligence guarantees absolutely uniform and reproducible functional sequences for optimum welding results. The modular construction in useful and easy-to-service compact housing, the modern design and progressive technology provide the SOYER stud welder with its unique appearance. The BMK-12W stud welder is universally applicable and combines 3 different stud welding methods in a sturdy compact case.
  • Drawn arc stud welding
  • Stud welding with protective gas
  • Short-cycle drawn arc stud welding

Additional performance features of the BMK-12W stud welder include:
  •  Development and production fulfil all prescribed safety targets such as
    • the latest safety and accident prevention regulations (Act on the Safety of Technical Working Equipment)
    • electromagnetic compatibility (EMC Act)
    • European regulations (EU Directives on Machinery)
  • Certificate proof of mentioned safety targets
  • Simplest operator guidance via highly sophisticated membrane keyboard with clear symbols for all necessary parameter inputs
  • GS/CE/S emblem for verified safety
  • Shielding gas preflow time variably adjustable
  • Preweld current time variably adjustable
  • Welding time variably adjustable
  • Integrated gas operating facilities
  • Easy to carry and ideal for mobile application
  • Optional simple and low-cost retrofitting possibility with an automatic module for semi- and fully automatic stud feed
  • Interface for signal interchange with external controls
  • LED display panel with control function of all operational states
  • Integrated self-protecting device in case of excess temperature or excessive welding sequence
  • Computer check on operability and simulated program run of all setting parameters on stud welder and gun without welding current
  • New abrasionproof, scratch-resistant and antisoiling plastic film coating on the front panel to protect all inscriptions even after many years of use
  • Table on the front panel indicating standard values for all common stud types and diameters
  • Operating range with short-cycle drawn arc welding:M3 – M12 RD or Ø 2 – 11 mm
  • Operating range with shielding gas operation:M3 – M12 RD or Ø 2 – 11 mm
  • Operating range with drawn arc welding:M3 – 12 RD or Ø 2 – 11 mm
