Description
Pipe Roll Grooving Machine 1.1/4″-16″
Capacity: 1 1/4″ through 16″ (42mm – 408mm)

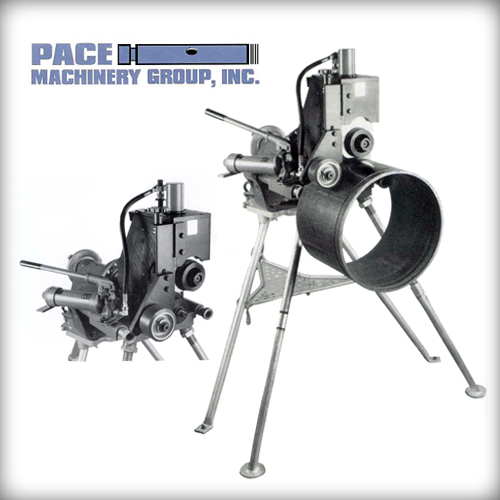

Get double duty from the Ridgid® 300 Pipe Threader by converting it to a pipe groover with the Model 1022 Pipe Groover. Designed for quick, easy mounting on standard Model 300 the 1022 Pipe Groover can roll grooves in pipe from 1 1/4″ to 16″ diameter. The hand hydraulic pump will deliver up to 16,000 PSI pressure at the point of roll grooving; your Threader’s motor will rotate the pipe to produce specification-quality grooves in pipe. Like all Pace Pipe Grooving machines, the Model 1022 is ruggedly built to deliver easy, trouble-free service.
Get double duty from the Ridgid® 300 Pipe Threader by converting it to a pipe groover with the Model 1022 Pipe Groover. Designed for quick, easy mounting on standard Model 300 the 1022 Pipe Groover can roll grooves in pipe from 1 1/4″ to 16″ diameter. The hand hydraulic pump will deliver up to 16,000 PSI pressure at the point of roll grooving; your Threader’s motor will rotate the pipe to produce specification-quality grooves in pipe. Like all Pace Pipe Grooving machines, the Model 1022 is ruggedly built to deliver easy, trouble-free service.
MODEL 1022 SPECIFICATIONS
Capacity: 1 1/4″ through 12″ SCHD 40 (10mm), 12″ through 16″ Standard Wall .375 (9.5mm), 2″ through 6″ Copper Tubing K,L,M and DWV
Hydraulic Pressure at Roller: 16,000 PSI max.
Shipping Weight: 285 lbs. (129.3 kg)
Capacity: 1 1/4″ through 12″ SCHD 40 (10mm), 12″ through 16″ Standard Wall .375 (9.5mm), 2″ through 6″ Copper Tubing K,L,M and DWV
Hydraulic Pressure at Roller: 16,000 PSI max.
Shipping Weight: 285 lbs. (129.3 kg)
