Description

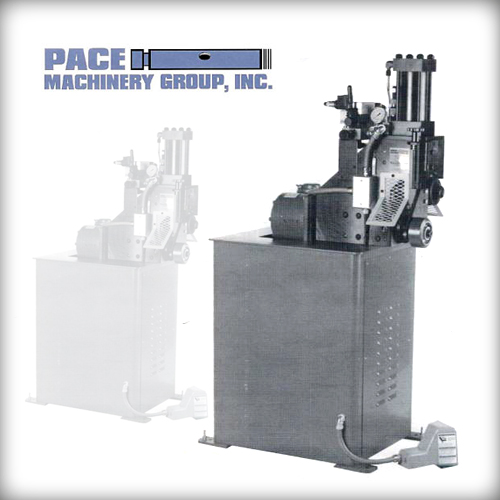

Pipe Roll Grooving Machine 2″-24″
Capacity: 1 1/4″ through 24” (32-610mm)
You can roll groove a lot of pipe in a wide range of diameters with this model because the operator merely pushes a button to get the job done. Six easily interchanged Top and Bottom Rollers give Model 2021 the versatility to meet virtually any piping system requirement. The self-contained hydraulic system provides up to 16,000 psi pressure at the point of roll grooving. Hydraulic pressure is adjustable to provide optimum grooving efficiency for all diameters and wall thicknesses within the machine’s range. Model 2021 is shipped completely assembled with Top and Bottom Rollers 4” through 6” installed on machine.
You can roll groove a lot of pipe in a wide range of diameters with this model because the operator merely pushes a button to get the job done. Six easily interchanged Top and Bottom Rollers give Model 2021 the versatility to meet virtually any piping system requirement. The self-contained hydraulic system provides up to 16,000 psi pressure at the point of roll grooving. Hydraulic pressure is adjustable to provide optimum grooving efficiency for all diameters and wall thicknesses within the machine’s range. Model 2021 is shipped completely assembled with Top and Bottom Rollers 4” through 6” installed on machine.
MODEL 2021 SPECIFICATIONS
Capacity: 1 1/4” through 12” SCHD 40 (10mm), 12” through 24” Standard Wall .375 (9.5MM), 2” through 6” Copper Tubing K,L,M and DWV
Pipe Rotatlon Speed: 30 RPM
Hydraulic Pressure at Roller: 16,000 psi max.
Spindle Height from Floor: 33” (838mm)
Electric Motor: 3 HP 60 Hz 220 V.3 PH.
Hydraulic Pump Motor: 1 HP 60 Hz 220 V.3 PH.
Floor Space Required: 30” x 22” (762 x 559mm)
Shipping Weight: 640 lbs. (290 kgs)
Capacity: 1 1/4” through 12” SCHD 40 (10mm), 12” through 24” Standard Wall .375 (9.5MM), 2” through 6” Copper Tubing K,L,M and DWV
Pipe Rotatlon Speed: 30 RPM
Hydraulic Pressure at Roller: 16,000 psi max.
Spindle Height from Floor: 33” (838mm)
Electric Motor: 3 HP 60 Hz 220 V.3 PH.
Hydraulic Pump Motor: 1 HP 60 Hz 220 V.3 PH.
Floor Space Required: 30” x 22” (762 x 559mm)
Shipping Weight: 640 lbs. (290 kgs)
