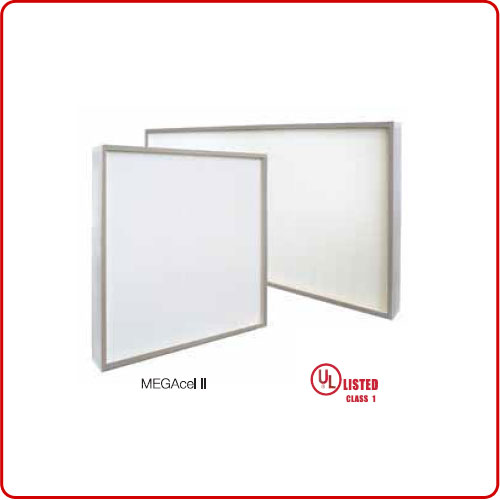

MEGAcel ll® Extended Surface Pleated Panel Filters
Description
The AAF MEGAcel II is a PTFE Membrane filters which is designed to meet semiconductor industry cleanroom filtration requirements for fab’s modular, mini and micro environments, as stated in the ISOOI specifications. The filter provides
extremely high particulate filtration efficiencies, lower pressure drop and negligible off-gasing.
Application
Available for all ranges of applications. i.e : Semiconductor.
Product Features & Benefit
- PTFE Membrane combines ultra-high efficiency with negligible pressure drop
- Lower energy consumption save more than 30% than normal filter high resistance to corrosive environments (Acids, Alkalis, organic substances)
- Negligible off-gassing properties (boron, sodium, potassium , silicon)
- Tougher media, more resistance to rough handling in transportation and installation
- ULQOO standard class rating
- Lower profile reducing space and weight
Specification
| Size (mm) | Depth (mm) | IR 0.45m/s (Pa) | |||||
| No | H13 | H14 | U15 | U16 | U17 | ||
| 1 | 600 x 1200 | 50 | 55 | 65 | 85 | 90 | 120 |
| 2 | 600 x 1200 | 69 | 55 | 65 | 85 | 90 | 120 |
| MEGAcel II | |
| Media | PolyTetraFluoroEthylene (AAF Helior – PTFE) |
| Separators | Thermoplastic beads |
| Sealant | Polyurethane |
| Frame | Extruded Aluminium |
| Efficiencies | H3, H14, U15, U16, U17 >99.95 – 99.999995% @ MPPS |
| Nominal Depth | 50, 69, 80mm |
| Max. Operating | 70ºC |
| Test Certification | U.L. Classification |
