Description

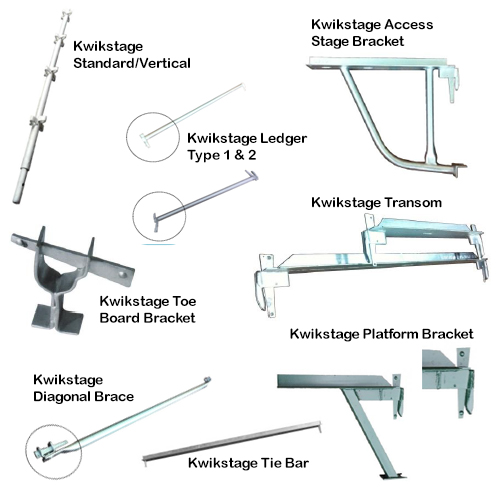

Heavy Duty Kwikstage Modular System
Kwikstage Standard / Vertical
Finish of Scaffolding available are: Galvanized & Painted
Size: 3m, 2.5m, 2m, 1.5m, 1m
Kwikstage Ledger
Type 1 & 2
Finish of Scaffolding available are: Galvanized & Painted
Size: 2.4m, 1.8m, 1.5m, 1.2m, 0.9m,
Kwikstage Access Stage Bracket
To extend the scaffold by cantilevering for an additional 1,2,3m Board Platform.
Finish of Scaffold available are: Galvanized & Painted
Kwikstage Transom
Finish of Scaffolding available are: Galvanized & Painted
Kwikstage Diagonal Brace
Diagonal Brace are made from 48.3mm DIA tube with a swivel c section and wedge at each end for connection to the V-cluster on the standard.
Function: Provide transverse and longitudinal bracing to the scaffold structure. The brace is available in various lengths to suits the combination of bay widths and heights.
Size: 2.7m, 3.2m, 3.6m
Finish of Scaffolding available are: Galvanized & Painted
Kwikstage Platform Bracket
To extend the scaffold by cantilevering for additional board platform.
Kwikstage Toe Board Bracket
Finish of Scaffolding available are: Galvanized & Painted
Kwikstage Tie Bar
Tie Bar are made from steel angle which has a dowel at both ends. This connects the two and three board platform brackets to support the steel planks.
These are available with back to back angles of 50 x 50 x 5mm to form a “T”. Our range of transoms are engaged with “V” pressing, which gives best results.
Finish of Scaffolding available are: Galv & Painted.
