HAWLE Valve Flanged Ends Elypso

Category:

Description

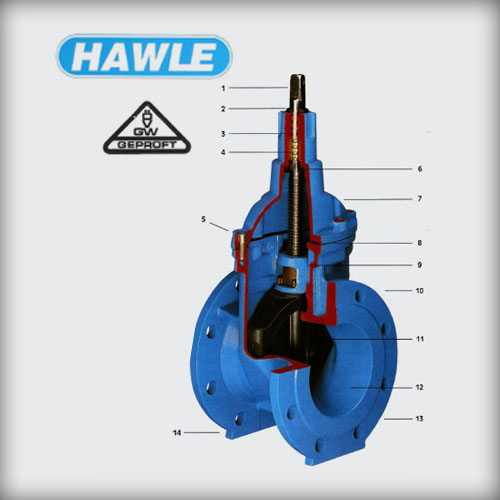

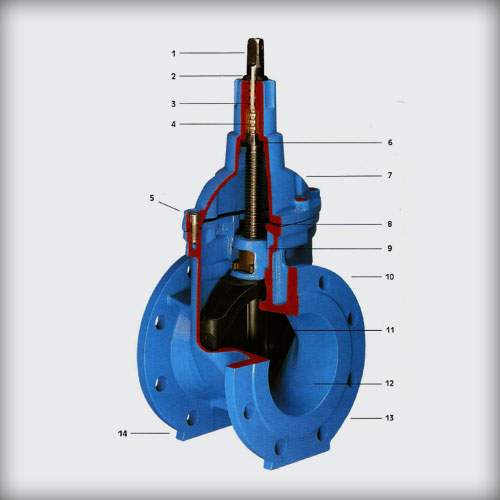

Resilient seated gate valve with smooth straight-through bore

1 stainless steel spindle St 1.4021 (X20 Cr13J. with rolled thread, long heavy duty spindle guide for high resistance to wear and tear

2 Wiper ring of EPDM

3 O·Rings of NBR, the perfect spindle seal

4 Thrust collar drawn brass Ms 58 – DIN 17660 giving positive support to spindle neck

5 Bonnet screws steel st 8.8 DIN 912, absolutely corrosion protected by being sunk into the body and sealed, and by passing through flat gasket

6 Back seal of EPDM

7 Bonnet epoxy powder coated ir.iside and outside

8 Flat gasket of EPDM

9 Wedge guide patented, effective 3-point guide system prevents the wedge from tilting, relieves the force on the spindle and minimises the closing torque

10 Body epoxy powder coated inside and outside

11 Wedge encapsulated with vulcanized EPDM – with drain hole
DN 20 – 25 of’ Ms 58              DIN 17660
DN 32 – 40 of Rg7                  DIN 1705
DN 50 – 400 of GGG 400       DIN 1693
Spindle nut: DN 50 – 125       CuZn35Pb3As
                    DN 150 – 400     Rg7

12 Bore clear, unobstructed waterway, no seating recess

13 Flanges to DIN 28605 drilled to DIN 2501 – PN 10, DIN 2501 – PN 16 other standards on request

14 Feet
