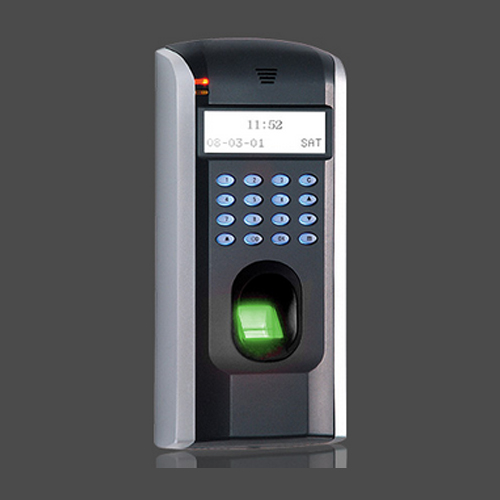

F7 Fingerprint Access Control

· Support 50 time zones

Features:
· Audible indicators allows for real time operation
· Optical-base technology
· Support 50 time zones, 5 grouping, 10 groups
· LCD with 80 characters and blue backlit keypad
· Dismantlement alarm, break-in alarm
· Built-in relay
· Use of stand-alone mode or working in conjunction with Ethernet, RS232 and RS485
· Multi-language optional: English, Simplified Chinese, Traditional Chinese, Spain, Protuguese, Turkish, French, German, Arabia, Frasi, Japanese, Indonesian, Malay, and Thai, etc
· With check in/out function
· Centralized enrollment and real time monitor



Specifications:
· Verification Method: Fingerprint, ID+Password, Fingerprint/ (ID+Password)
· Verification Mode: 1:1 (500 / 1500 templates), 1:N (Less than 500 / 1500 templates)
· Verification Time: Less than 2.0 sec
· False Rejection Rate (FRR): Less than 1%
· False Acception Rate (FAR): Less than 0.0001%
· Capacity: 500 templates / 1500 templates
· Power Supply: DC12V (stay current: 50mA) (work cuurent: 400mA)
· Relay output: DC12V, 3A
· Communication: RS232, RS485, TCP/IPWeigand 26bits output
· Communication Speed: 115200 / 38400 / 19200 / 9600 BPS TCP/IP: 10MB/AUTO
· Log Data: 30000 / 100000 events
· Size: 82 X 55 X 180mm
· Display: 122 X 32 dots LCD, 2 LED
