Description
Performance and Efficiency

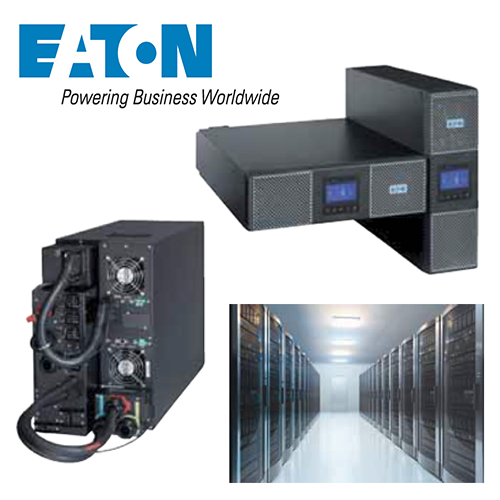

• Double conversion topology. The Eaton 9PX constantly mon-itors power conditions and regulates voltage and frequency.
• With up to 95% efficiency in online double conversion mode and 98% in high-efficiency mode the 9PX provides the highest efficiency level in its class to reduce energy & cooling costs.
• With a 0.9 power factor the 9PX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
• With a RT (Rack/tower) versatile form factor the 9PX is the most compact solution in its class delivering up to 5400W in only 3U and 10kW in only 6U.
Manageability
• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.
• The 9PX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software Suite.
• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices. It can also be used to remotely reboot locked-up network equipment or to manage scheduled shut-downs and sequential start-ups.
• The 9PX offers Serial, USB and relay connectivity, plus an extra slot for an optional card. Eaton’s Intelligent Power® Software Suite compatible with all major OS including virtu-alization software such as VMware and Hyper-V is included with each UPS.
Availability and Flexibility
• The internal bypass allows service continuity in case of internal fault, a Maintenance ByPass is also available for easy replacement of the UPS without powering down critical systems.
• The Eaton 9PX can be paralleled to achieve twice the power of unitary product using HotSync technology, without extra cost on the initial purchase (available in Q2 2013)
• Stronger, longer battery life: Eaton ABM® battery manage-ment technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
• More runtime can be added with up to 12 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.
