Description

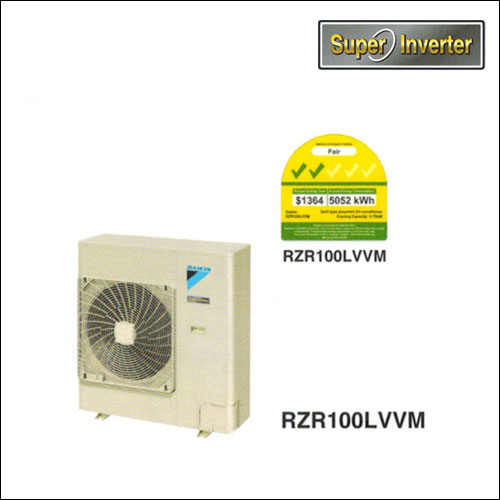

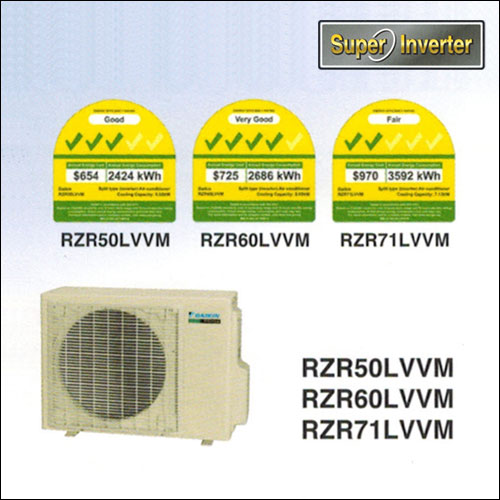

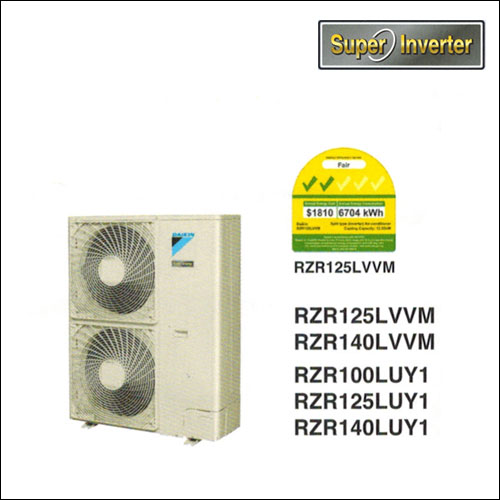

Compact Outdoor unit
Easy installation and maintenance
- Pre charged for up to 30 metres
If refrigerant piping length does not exceed 30m, there is no need for on-site gas charging. - Long piping length
Allowed refrigerant pipe length and level diffference ALL model Pre charged1 30 m Max. length 50 m
(Equivalent length 70m)Max. level difference 30 m Note: 1Additional refrigerant charging is required if the refrigerant pipe is longer than the length. - 4-direction piping offers greater layout (RZR100-140 only)
The outer panel for the piping connection part of the front, right side and backside can be removed and is easier for post-installation piping work. - Facilitates pump down
(Refrigerant recovery function)
A pump-down switch is provided to make it easier to collect refrigerant if the unit to be moved or layout modified.
*Pump-down function is available for pre-charged refrigerant amount, - Low gas pressure detection function
Effective gas monitoring reduces the labor required for operation, maintenance, and repairs.
Compact and lightweight
Reduced installation work thanks to light, compact outdoor unit.
Night time quiet operation function
The Automatic night quiet mode will initiate 8 hours after the peak temperature is reached in the daytime, and normal operation will resume 10 hours after that.
| Sound level1 (dB(A)) | ||
| Rated2 | Night Quiet Mode | |
| RZR50/60LVVM | 48 | 44 |
| RZR71LVVM | 48 | 44 |
| RZR100LVVM/LUY1 | 49 | 45 |
| RZR125LVVM/LUY1 | 50 | 45 |
| RZR140LVVM/LUY1 | 50 | 46 |
Energy saving (RZR50-71 only)
Through use of a V-cut propeller fan that imitates the efficiency of the swan, a migratory bird, airflow becomes smooth and loss is reduced.
Durability
As the bottom frame is subject to corrosion, corrosion-proof galvarium steel plate is adopted to enhance the durability.
Heat exchange fins provided with anti-corrosion treatment.
Demand Control Function (RZR100-140 only)
The maximum capacity is maintained within a set level of pwoer consumption, which makes it possible to keep comfort and effective demand control
