Description

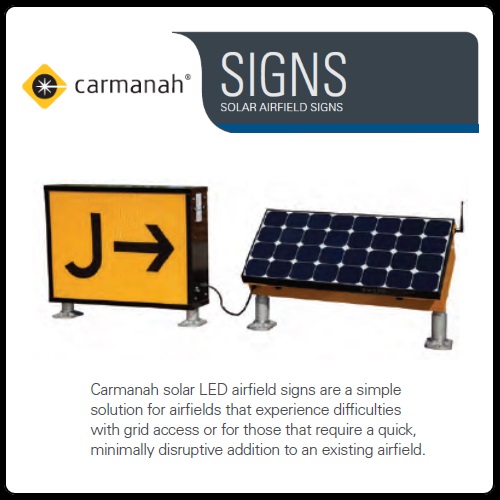

Carmanah solar LED airfield signs are a simple
solution for airfields that experience difficulties
with grid access or for those that require a quick,
minimally disruptive addition to an existing airfield.
• Includes an L-858Y, L-858R, L-858L, or L-858B solar-powered
sign and a Solar Engine Power Supply (SEPS).
• SEPS incorporates the latest technology in solar
technology, hardware and software to provide a reliable
and sustainable power source
• High quality LED light source virtually eliminates runway
shutdowns, reduces re-lamping expenses and on-going
maintenance costs
• Battery life: 5+ years
• Easy installation and relocation: no specialized work crews
required
• Limited air traffic disruption and functions immediately
upon installation
• Optional Handheld Controller allows for remote, wireless
operation including mode changes for enhanced visibility in
poor weather conditions
• Engineered for reliable performance, the Energy
Management System (EMS) monitors and adapts the
brightness to environmental conditions for consistent
operation and long life under the tough conditions
• Minimum autonomy (operation without solar charging) 7+
days – scalable to meet requirements up to 40 days
Compliance with Standards
FAA: Designed to meet L-858Y, L-858R, L-858L and L-858B AC
150/5345-44 (Current Edition) and the FAA Engineering
Brief No. 67 “Light Sources other than Incandescent
and Xenon for Airport Lighting and Obstruction Lighting
Fixtures.”
CE: Complies with the requirements of the EMC Directive
2004/108/EC
ICAO: Please inquire about ICAO compliant options
Construction
Corrosion-resistant sign construction requires minimal
maintenance:
• Aluminum housing
• Acrylic sign legend panels
• Stainless steel hardware Retroreflective sheeting
Installation
Each sign is furnished complete with mounting flanges for
installation on a concrete pad, which is the recommended
method of installation. Contact Carmanah for more information
on sign installation hardware.
The Solar Engine Power Supply (SEPS) should be installed on a
level concrete pad within 20 feet of the solar sign.
For a temporary application, the wiring between the SEPS and
the sign can be above ground. Both the sign and SEPS contain
side conduits for cabling access.
