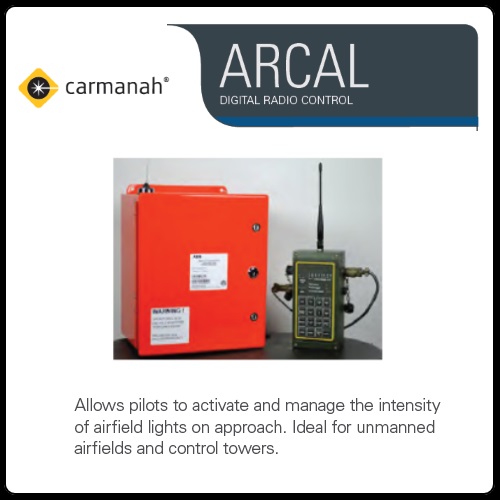

Description
Allows pilots to activate and manage the intensity
of airfield lights on approach. Ideal for unmanned
airfields and control towers.
Compliance with Standards
FAA: L-854 AC 150/5345-49 (Current Edition)
ETL Certified
ICAO: Aerodrome Design Manual, Part 5 para. 3.4.6
FCC: 47 CFR, Part 15:2007 (Class A)
Canada: TP 312 – Aerodromes Standards and
Recommended Practices
The Carmanah ARCAL system provides air-to-ground
(Type I) radio control of Carmanah solar airfield products.
Pilots can remotely activate and change intensities of our
products by simply keying the microphone button of their
standard VHF communication transmitter.
Airport operators benefit from maximum runway usage
while minimizing energy expenditure and increasing the
performance capabilities of our solar airfield products.
• Designed for outdoor, unattended all-weather operation
• Eliminates costly trenching and installation of control
lines to remote facilities
• No special airborne equipment or adapters required
• Lights are activated remotely from the air and remain
on at the selected intensity for a period of 15 minutes.
Additional timer settings of 1, 30, 45 and 60 minutes
are available
• Receiver may be programmed to operate on any
frequency in the specified VHF range between
118.0 to 136.0 MHz
• Selectable decoder enable/disable prevents multiple
relay operation during normal daytime operations
• Optional Remote Maintenance Module (RMM) available
• Configurable to Type J or Type K ARCAL via DIP switch
selection (Canada)
