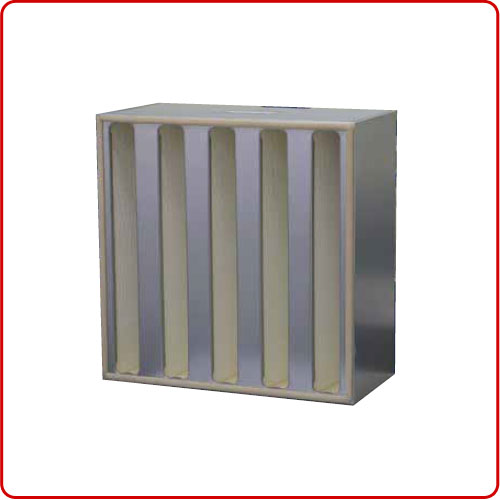

AstroCel® III 4000 Extended Surface Pleated Panel Filters
HEPA/ULPA Cleanroom Products
Description
AstroCel® display excellent efficiency on the fine particulate matter and is designed for use in high air volume application. due to its high capacity fewer filters are required to handle the same volume of air compare to same HEPA filters with lower capacity.
Application
Available for all ranges of applications, ie: Food processing, Pharmaceutical, Semiconductor.
- Product Features & BenefitsH12 and H13 in accordance with EN1822
- 4000 m³/h air volume saves space
- Low energy consumption
Specification
| AstroCel® III 4000 | |
| Media | Ultra-fine fiberglass |
| Separators | Thermoplastic beads |
| Sealant | Polyurethane |
| Frame | Galvanized Steel, Stainless Steel |
| Efficiencies | 99.99-99.99995% @ 0.3 micron particle |
| Nominal depth | 292mm |
| Max. Operating Temp. | 70ºC |
| Initial Resistance | 250 Pa @ 400 m³/h |
