20T SWL Overhead Cranes and Outdoor Gantry Cranes

KRANECARE SERVICES was established in 2009 as an industrial crane and hoist specialist. Though we are a relatively young company, our engineers and technicians are veterans who have more than 20 years of experience with the MORRIS crane and hoist equipment. Our core business is in the design, supply, installation, testing and commissioning of lifting equipment. Having served more than a thousand customers in the last 20 years, we understand our customers’ expectations and have the experience and expertise to exceed them.

Our single and double girder overhead cranes truly set the standard for both safety and operating features globally. Ensuring that our customers get the best performance/price ratio, these cranes boast a unique hoist design featuring:

i) braked gearbox with enhanced safety and reliability superior to conventional braked motor hoists

ii) internal automotive quality hoist gearbox with helical gears submerged in oil; much longer lifespan and reduced lubrication failure compared to external gears

iii) internal direct drive hoist trolley with helical gears submerged in oil; much longer lifespan and reduced lubrication failure compared to external gears that cut into the trolley wheel flange

iv) reaction rollers that improve traction and control

v) a choice of control systems on crane travel motion; 2 speed motor drive options available to give exacting control over crane movement without the need for electronics

vi) heavy duty double band rope guide ensures greater reliability

vii) patented safe load cut-out device prevents overloading

viii) adjustable DC disc brakes on travel and traverse motions for controlled braking

vx) open plan hoist design reduces service and maintenance cost

x) electrical protection and monitoring

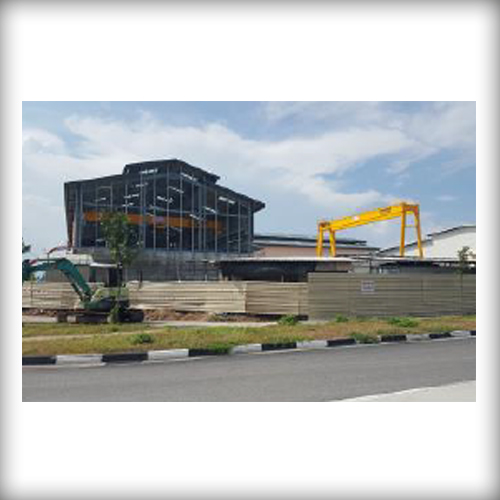

Replete with all the features of our single/double girder cranes, our gantry –sometimes also called Portal – cranes provide ideal solutions for outdoor applications by virtue of their pre-fitted portal legs. Common uses of gantry cranes include casting of concrete for precast yards; underground tunnel handling for installation of pre-cast segments; and moving steel material in open storage yards amongst many other outdoor uses. They are also very functional indoors when existing infrastructures cannot support conventional single/double girder cranes.
